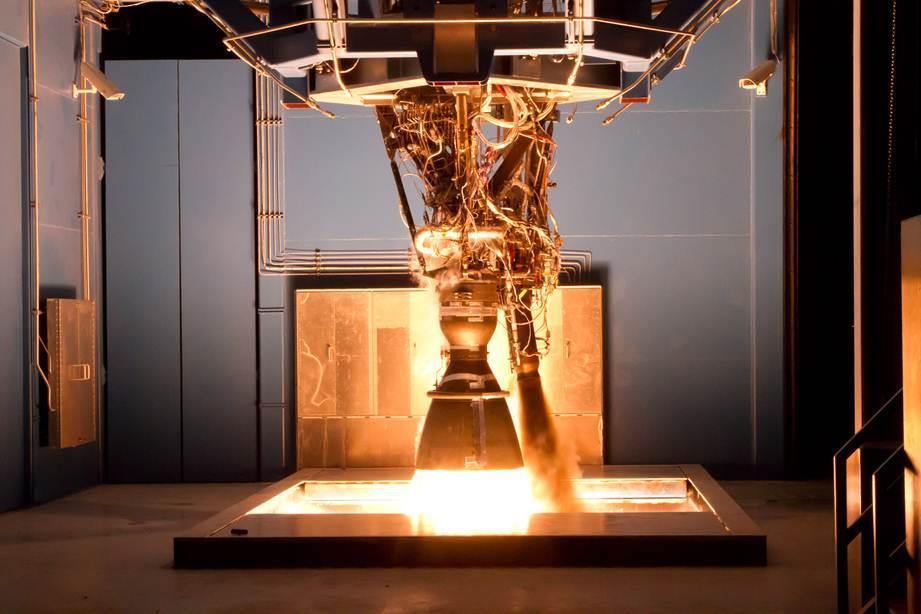

Двигательная установка. Merlin 1D Vac. [Редактировать]

Технические характеристики

#ХарактеристикаЗначение
1Тяга, кНьютон935
2Удельный импульс, секунд345
3Время работы, секунд397
4Масса (сухая), кг490
5Давление в камере сгорания (более), МПа9.7
6Степень расширения сопла (более), раз117
7Возможность многократного включенияда
8Тип двигателяГазогенераторный
9Подача топливаТурбонасос
10Возможность регулирования тягида
