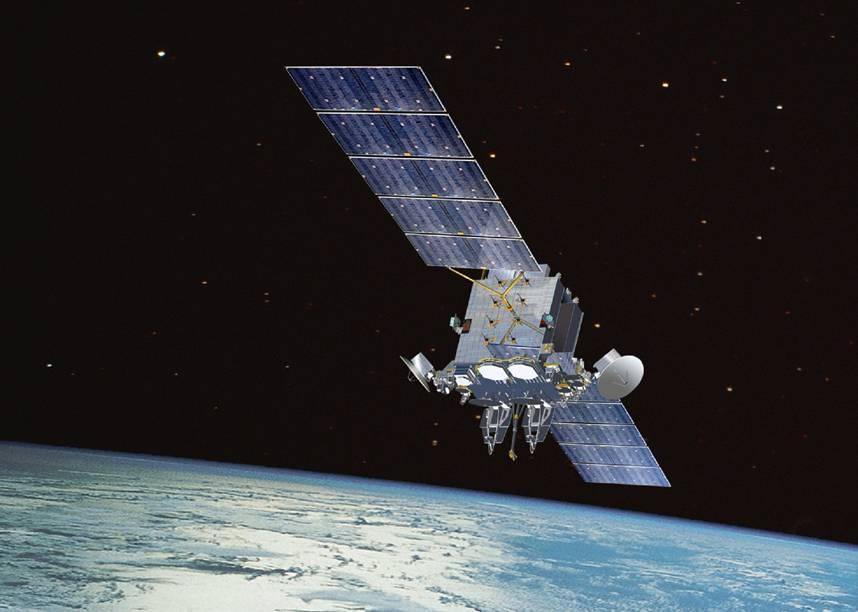

Спутник связи. AEHF 2. [Редактировать]

AEHF-2 это военный спутник связи. При его разработке был полностью учтен неудачный опыт запуска AEHF-1, что привело к дополнительному контролю за процессом сборки магистралей.

В общем случае AEHF-2 относится к новейшему поколению спутников сверхвысокочастотной связи, которые получили обозначение AEHF (Advanced Extremely High Frequency). Первый такой аппарат уже выведен на орбиту в 2010 году и, по заверениям Пентагона, превосходит по своим техническим характеристикам всю существующую 15 лет американскую военную спутниковую группировку, имеющую название Milstar. Как заявляет производитель спутника - корпорация Lockheed Martin, аппараты AEHF представляют собой «самый технологически продвинутый военный спутник связи из когда- либо разработанных».

По свидетельству корпорации, скорость передачи данных при помощи нового спутника по сравнению с прежней возрастет в пять раз, с его помощью можно будет обеспечивать, в том числе, защищенную связь президента США при потенциальных вооруженных конфликтах «любого уровня». Пентагон заключил с Lockheed Martin контракт на постройку еще двух таких спутников. Кроме того, партнерами правительства США в рамках этой программы являются власти Великобритании, Канады и Нидерландов. В обмен на участие в финансировании изготовления спутников они получат частичный доступ к его ресурсам. Предполагается, что в космосе будет сформирована целая группировка подобных спутников – до шести единиц.

Дополнительные наименования

#НаименованияПоиск в новостяхПоиск в документах
1USA 235НайтиНайти
238254НайтиНайти

Дополнительная классификация

#Наименования
1Страна оператор(владелец) - США
2Тип оператора(владельца) - военные
3Тип орбиты - ГСО
4Страна производитель - США
5Все спутники связи

Технические характеристики

#ХарактеристикаЗначение
1Масса, кг6154
2Платформа 1xA2100M

Характеристики орбиты

#ХарактеристикаЗначение
1САС, год14

Пусковые характеристики

#ХарактеристикаЗначение
1Код NSSDC2012-019A

Экономические характеристики

#ХарактеристикаДата измеренияЗначение
1Стоимость , млн. долл.580
2Стоимость (аппарат), млн. долл.491.2
3Оператор US Air Force
4Производитель Lockheed Martin

Информация об удачном запуске

#ХарактеристикаЗначение
1Космодром Мыс Канаверал
2Дата пуска2012-05-04 at 18:42:00 UTC
3Полезная нагрузка 1xAEHF 2
4Ракета-носитель 1xАтлас 5 531
