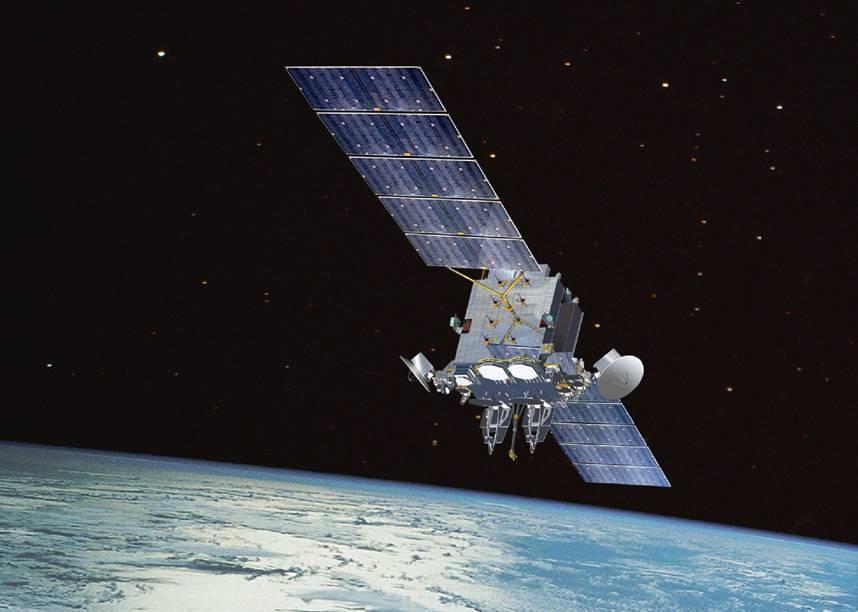

Спутник связи. AEHF 4. [Редактировать]

Построен  Lockheed Martin и Northrop Grumman. Поддерживает различные алгоритмы шифрования связи. Также заявлено, что аппарат способен противостоять помехам, а также обеспечивать связь в условиях применения ядерного оружия. Космический корабль несет на своем борту две складные, пяти-сегментные солнечные батареи от которых осуществляется зарядка батарей. Спутник AEHF-4 оснащен комбинированной двигательной установкой. Главная двигательная установка спутника построена на основе двигателя IHI BT 4, который используется для больших маневров регулирования орбиты включая подъем на ГСО. BT 4 был создан японской фирмой IHI и имеет сухую массу 4 килограммов и длину 0.65 метров. Двигатель обеспечивает 450 ньютонов и работает на гидразине. Топливо хранится в сферических баках, которые наддуваются гелием. В дополнение к основному двигателю AEHF-4 оборудован двенадцатью двигателями коррекции орбиты (выдают тягу 22 ньютона). Кроме того, на AEHF-4 установлена двигательная установка мощностью 4.5 кВт, которая обеспечивает перенацеливание спутника.

Дополнительная классификация

#Наименования
1Страна оператор(владелец) - США
2Тип оператора(владельца) - военные
3Тип орбиты - ГСО
4Страна производитель - США

Технические характеристики

#ХарактеристикаЗначение
1Масса, кг6168
2Платформа 1xA2100M

Характеристики орбиты

#ХарактеристикаЗначение
1САС, год14

Экономические характеристики

#ХарактеристикаДата измеренияЗначение
1Стоимость , млн. долл.580
2Стоимость (аппарат), млн. долл.491.2
3Оператор US Air Force
4Производитель Lockheed Martin
