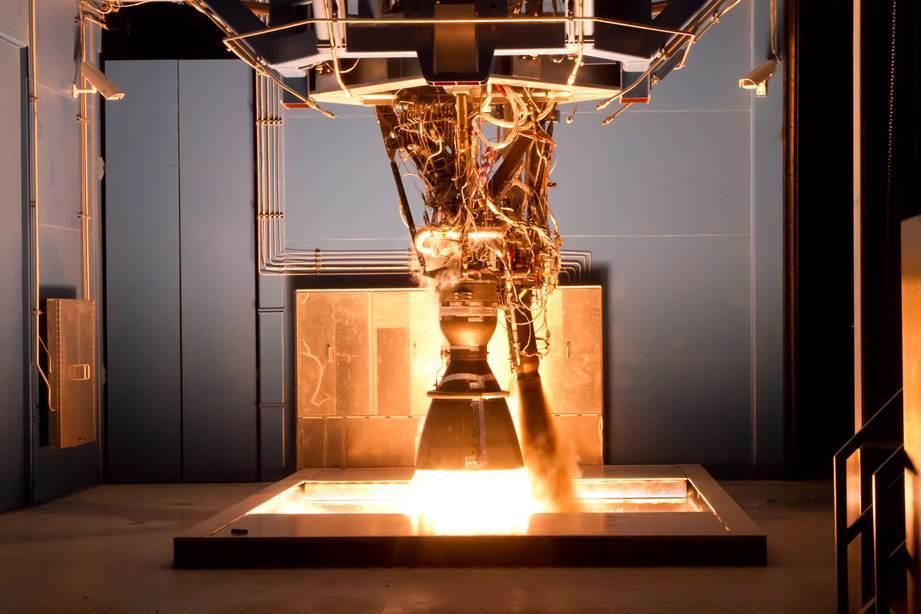

Двигательная установка. Merlin 1D FT. [Редактировать]

Дополнительные наименования

#НаименованияПоиск в новостяхПоиск в документах
1Merlin 1D Full ThrustНайтиНайти

Технические характеристики

#ХарактеристикаЗначение
1Тяга (Вакуум), кНьютон825
2Тяга (Уровень моря), кНьютон756
3Удельный импульс (Вакуум), секунд311
4Удельный импульс (Уровень моря), секунд282
5Время работы, секунд162
6Масса (сухая), кг470
7Диаметр, метра1
8Давление в камере сгорания (более), бар97
9Степень расширения сопла, раз16
10Возможность изменения тяги, процентов55-100
11Возможность многократного включенияесть
12Тип двигателяГазогенераторный, открытый цикл
13Подача топливаТурбонасос
