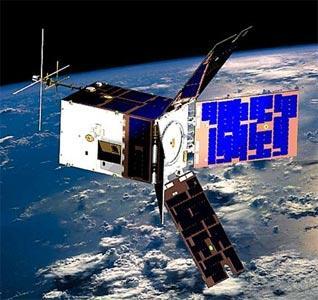

Спутник технологический. STPSat 1. [Редактировать]

Экспериментальный военный космический аппарат построенный на основе базовой многоцелевой платформы SIV (Standard Interface Vehicle – изделие со стандартным интерфейсом) компании AeroAstro. Элементами платформы являются гибкая система ориентации, фиксированные и подвижные солнечные батареи и интегрированный модуль электроники, включающий блоки управления электропитанием и подсистемы управления и обработки данных.

Дополнительные наименования

#НаименованияПоиск в новостяхПоиск в документах
130775НайтиНайти

Дополнительная классификация

#Наименования
1Тип оператора(владельца) - военные
2Страна оператор(владелец) - США
3Страна производитель - США

Технические характеристики

#ХарактеристикаЗначение
1Масса, кг158
2Габариты, см60,8 × 60,8 × 96,4

Характеристики орбиты

#ХарактеристикаЗначение
1Наклонение, град35.4
2Апогей, км534.6
3Перигей, км531.3
4Период, минут95.1
5Длинный диаметр эллипса, км6903

Пусковые характеристики

#ХарактеристикаЗначение
1Код NSSDC2007-006D

Экономические характеристики

#ХарактеристикаДата измеренияЗначение
1Стоимость (аппарат), млн. долл.12

Информация об удачном запуске

#ХарактеристикаЗначение
1Дата пуска2007-03-09 at 03:10:00 UTC
2Полезная нагрузка 1xOE-ASTRO
3Полезная нагрузка 1xMidSTAR 1
4Полезная нагрузка 1xOE-NEXTSAT
5Полезная нагрузка 1xSTPSat 1
6Полезная нагрузка 1xFalconSat 3
7Полезная нагрузка 1xCFESat
8Ракета-носитель 1xАтлас 5
